31mm Stainless Brush Dc Motor 12V Electric Curtain 3160 With Reducer

Name: 31mm Stainless Brush Dc Motor 12V Electric Curtain 3160 With Reducer
Brand: SECORE
Price: 1 USD

Quality 31mm Stainless Brush Dc Motor 12V Electric Curtain 3160 With Reducer for sale

Brand Name : SECORE

Model Number : DC3160

Certification : CE ROHS

Place of Origin : Guangdong

MOQ : 100

Price : Negotiated The Price

Payment Terms : T/T, D/A

Supply Ability : 100000pcs per month

Delivery Time : 9-12 working days

Packaging Details : 500pcs per carton or as request

Product name : 31mm steel tube DC brushed motor

Model number : DC3160

Nominal voltage : 12V

Commutation : carbon brush / machenical

Motor size : 31mm OD * 60mm Length

No load speed : 8000rpm

Rated speed : 7100rpm

Application : Money counter, mixer, mincer

Rated torque : 550g.cm

Power : 25W

Contact Now

31mm stainless brush dc motor low noise 12V 3160 electric curtain brushed motor equip with reduce gearbox

Main specification cases:

Model Reference Number: DC3160

Voltage range: DC 12V, 24V
High Speed: 3530rpm to 9000rpm , or tailor-made
Features: High speed, high torque, steady running, low noise

DC brushed motor applies for money counter, blender, shreeder, mixer, mincer etc.

Product name	Mechanical commutated brush dc motor
Case Material	Stainless steel
Voltage (VDC)	12V-24V
Speed (RPM)	5000-8000
Motor dimension	31mm*60mm
Shaft diameter	5mm
Shaft length	15mm
Motor overall length	79mm approx include shaft
Rated current	0.65A

MODEL	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY			AT MAXIMUM POWER			STALL
MODEL	VOLTAGE	SPEED RPM	CURRENT A	SPEED RPM	TORQUE gf.cm	CURRENT A	SPEED RPM	TORQUE gf.cm	POWER W	TORQUE gf.cm	CURRENT A
DC-3160	12	8000	0.35	7100	550	0.65	6500	550	35	1300	4.6
DC-3160	24	5000	0.25	4100	650	0.45	3800	650	30	1600	2.6

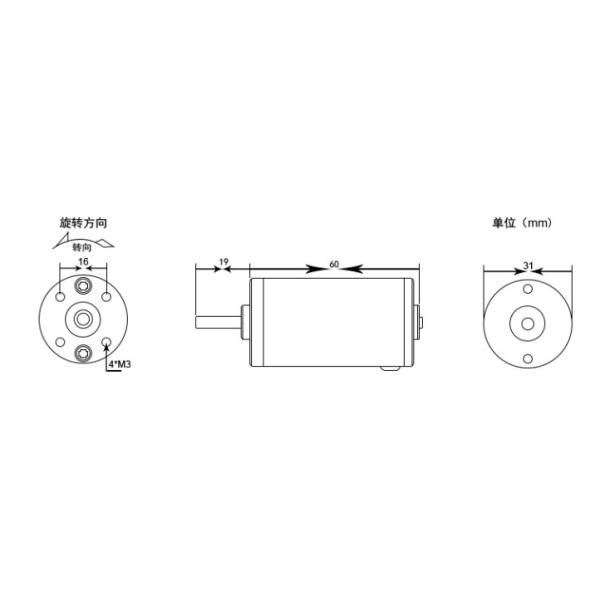

Motor dimensions

31mm Stainless Brush Dc Motor 12V Electric Curtain 3160 With Reducer

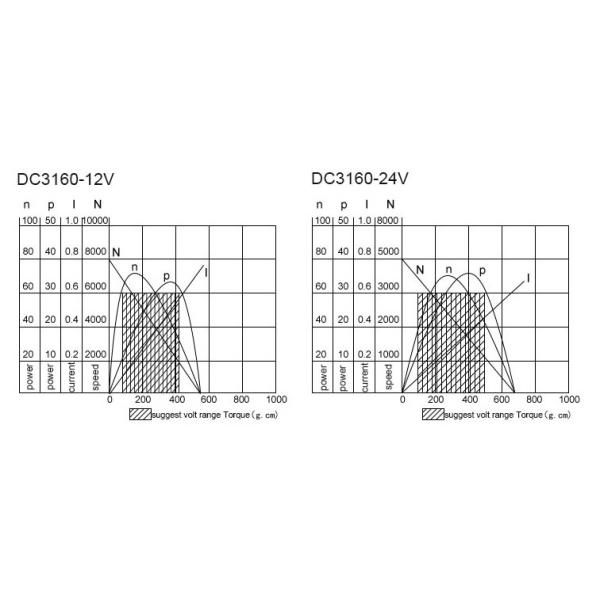

Performance curve

31mm Stainless Brush Dc Motor 12V Electric Curtain 3160 With Reducer

Determine the most suitable motor according to different movement:

For applications that run continuously and rarely shift gears, an AC series motor is a better choice.
For discontinuous dynamic applications, brushed DC motors or brushless DC motors are ideal.
For low-speed and high-load applications, a geared motor is an inevitable choice, that is: AC series motor/DC motor + reducer with a specific reduction ratio.
For applications that require stepless speed regulation, brushless DC motors are the best choice.
For applications that require precise positioning, stepper motors are a better choice.

Typical Application

Electric toothbrush	Electric toys	Electric tools	Electric callus removers
Robot vacuum cleaner	Model railways	Treadmill	Automobile electric components
Semiconductors	Office equipment	Power Hand Tool	Document handling equipment
